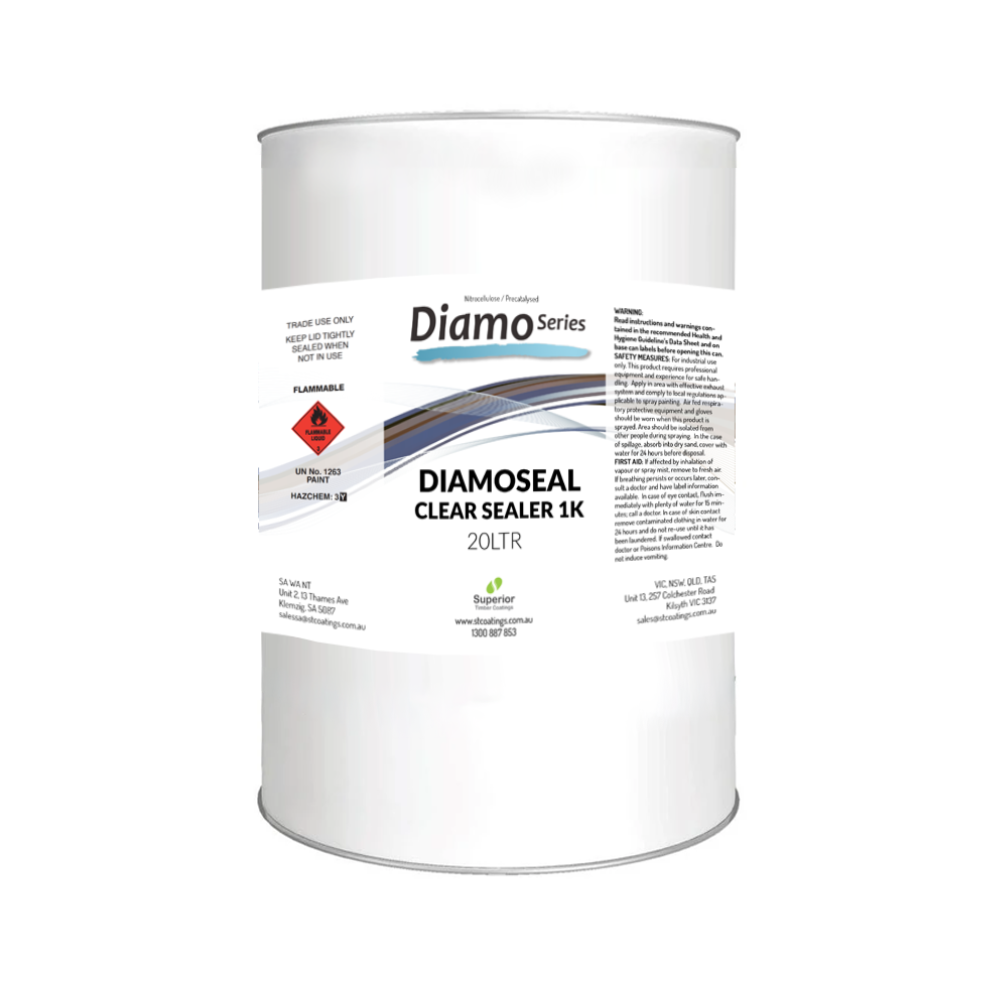

Product Overview: 320S Diamoseal is a single component, precatalysed nitrocellulose sealer designed for industrial applications on interior furniture and general woodwork. It offers a clear satin finish, excellent film build, hold-out, and sanding characteristics. It is particularly effective for sealing MDF and other timber substrates in industrial production lines.

Specifications:

• Product Name: 320S Diamoseal precatalysed nitrocellulose sealer
• Finish: Clear Satin
• Gloss Level: 10-20% @ 60° angle
• Thinning Options:
  • TZ075 Lacquer Thinners
  • TZ14S Reducer
  • (Can be thinned up to 5% by volume)
• Drying Time:
  • Tack free: 5-10 minutes
  • Recoat: 2 hours at ambient temperature
  • Oven curing: 20 minutes at 40°C (recoat time reduces to 30 minutes, with cooling to ambient temperature required before recoating)
• Exposure Suitability:
  • Interior: Very Good
  • Exterior: Not suitable (must be protected from direct sunlight, rain, and water condensation)
• Yellowing Characteristics: Typical of nitrocellulose-based lacquers
• Water Resistance: Suitable for splash resistance; not recommended for continuous water exposure. Two-component chemically resistant coatings like polyurethanes are recommended for wet areas.
• Container Sizes: 4L, 20L, 200L
• Coverage:
  • Theoretical: 15-20 square meters per liter
  • Practical: 6-8 square meters per liter (spray application)

Usage: 320S Diamoseal is used as an industrial-grade sealer over prepared timber, particle board, and MDF surfaces. It is ideal for internal furniture coatings, providing excellent vertical spray application, quick recoat times, and effective sealing properties.

Application Instructions:

• For Clear Finishes:
  1. Apply one coat of Precat Sealer and allow to cure for 1 hour at room temperature.
  2. Lightly sand with 320-400 grit paper and recoat with Intelac topcoat to achieve the desired gloss level.
  3. For additional coats, allow 2 hours of curing and repeat step 2.
• For Stained Finishes:
  1. Apply the desired stain and allow it to dry as recommended.
  2. Apply one coat of Precat Sealer and allow to cure for 1 hour at room temperature.
  3. Sand with 320-400 grit paper and recoat with Intelac to achieve the desired gloss level.
  4. For additional coats, allow 2 hours of curing and repeat step 3.

Precautions:

• Avoid applying excessively thick coats to prevent film defects and cracking.
• Nitrocellulose lacquers may yellow over time.
• Clear lacquer films will not protect timber from UV light-induced discoloration or degradation.
• Not recommended for vanity or kitchen bench-tops continuously exposed to water or high humidity; use two-component chemically resistant coatings in such conditions.

This sealer is specifically engineered for efficient application and durability in industrial wood finishing environments, ensuring high-quality results with appropriate handling and application techniques.
